Facilities

Reactor

Capacity Number of Units Material Operating Temperature Operating Pressure Tower Specifications Heat Source
25㎥ 2 SUS
316L		 Room temperature～150℃ Ordinary pressure 20 Steam
25㎥ 1 GL Room temperature～175℃ -0.1MPa ～ Ordinary pressure 28 Steam
25㎥ 1 SUS
316L		 Room temperature～175℃ -0.1MPa ～ Ordinary pressure 28 Heat medium

Distillation Facility （Bach　Type）

Capacity Number of Units Material Operating Temperature Operating Pressure Tower Specifications Heat Source
28㎥ 1 SUS
304		 Room temperature～150℃ -0.1MPa ～ Ordinary pressure 47 Heat medium
32㎥ 1 SUS
304		 Room temperature～150℃ -0.1MPa ～ Ordinary pressure 60 Steam
25㎥ 1 SUS
304		 Room temperature～175℃ -0.1MPa ～ Ordinary pressure 47 Steam
25㎥ 1 SUS
304		 Room temperature～225℃ -0.1MPa ～ Ordinary pressure 50 Heat medium

Distillation Facility　（Continuous Type）

Capacity Number of Units Material Operating Temperature Operating Pressure Number of Towers Heat Source
- 1 SUS
316Ｌ		 Room temperature～150℃ -0.1MPa ～ Ordinary pressure 2 Steam
- 1 SUS
316Ｌ		 Room temperature～150℃ -0.1MPa ～ Ordinary pressure 3 Steam
- 1 SUS
316Ｌ		 Room temperature～150℃ -0.1MPa ～ Ordinary pressure 2 Steam

Blend

Capacity Number of Units Material Operating Temperature Operating Pressure
5㎥ 1 SUS
316Ｌ		 Room temperature Ordinary pressure

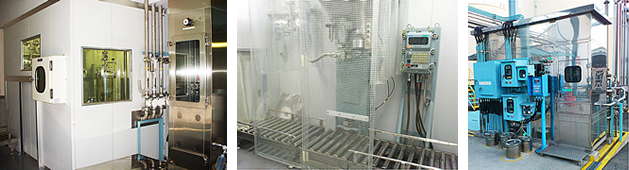

Analytical Equipment, Filling

・ Clean Room
・ Atomic Absorption Spectrophotometers
・ Particle counter
